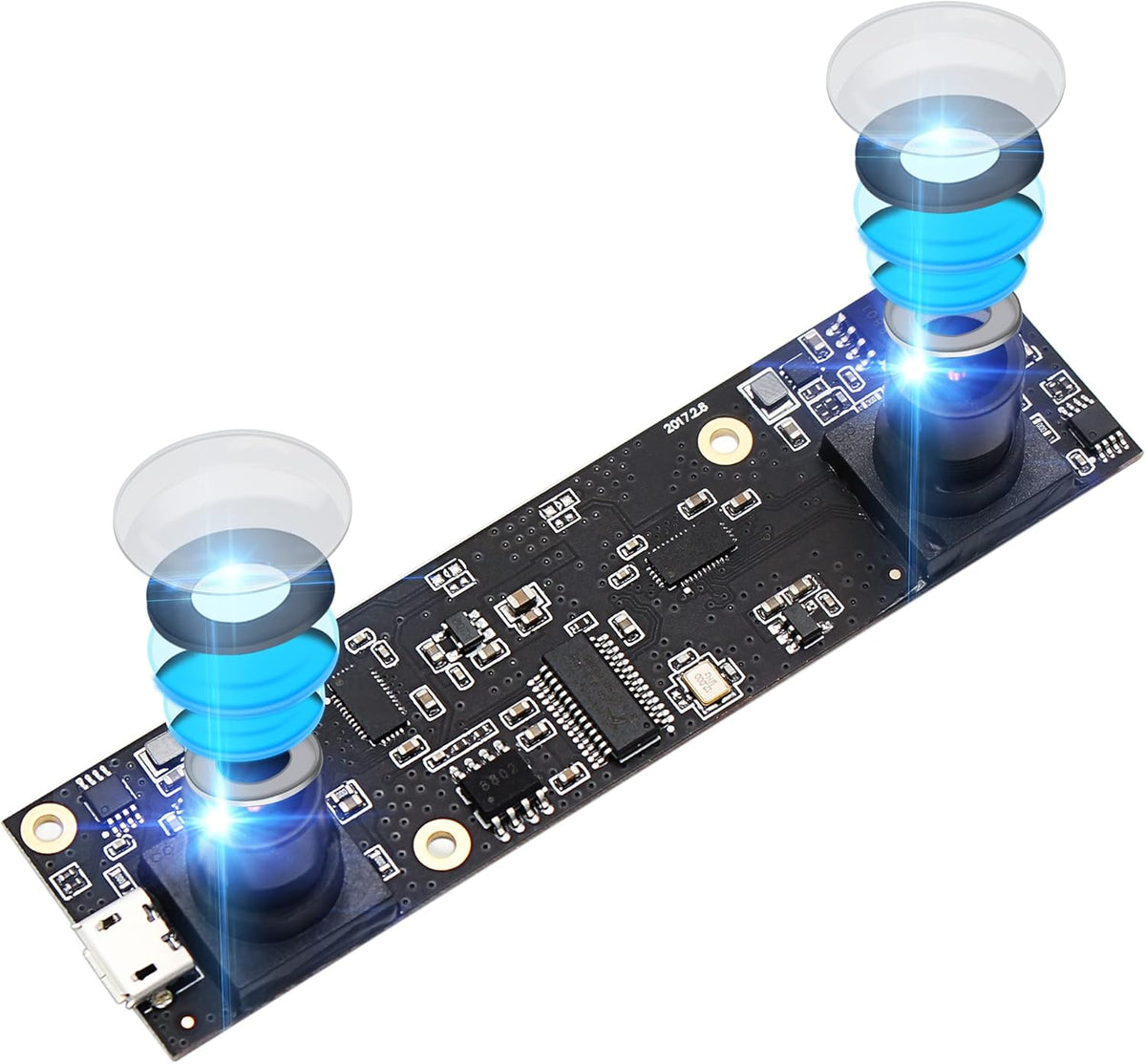

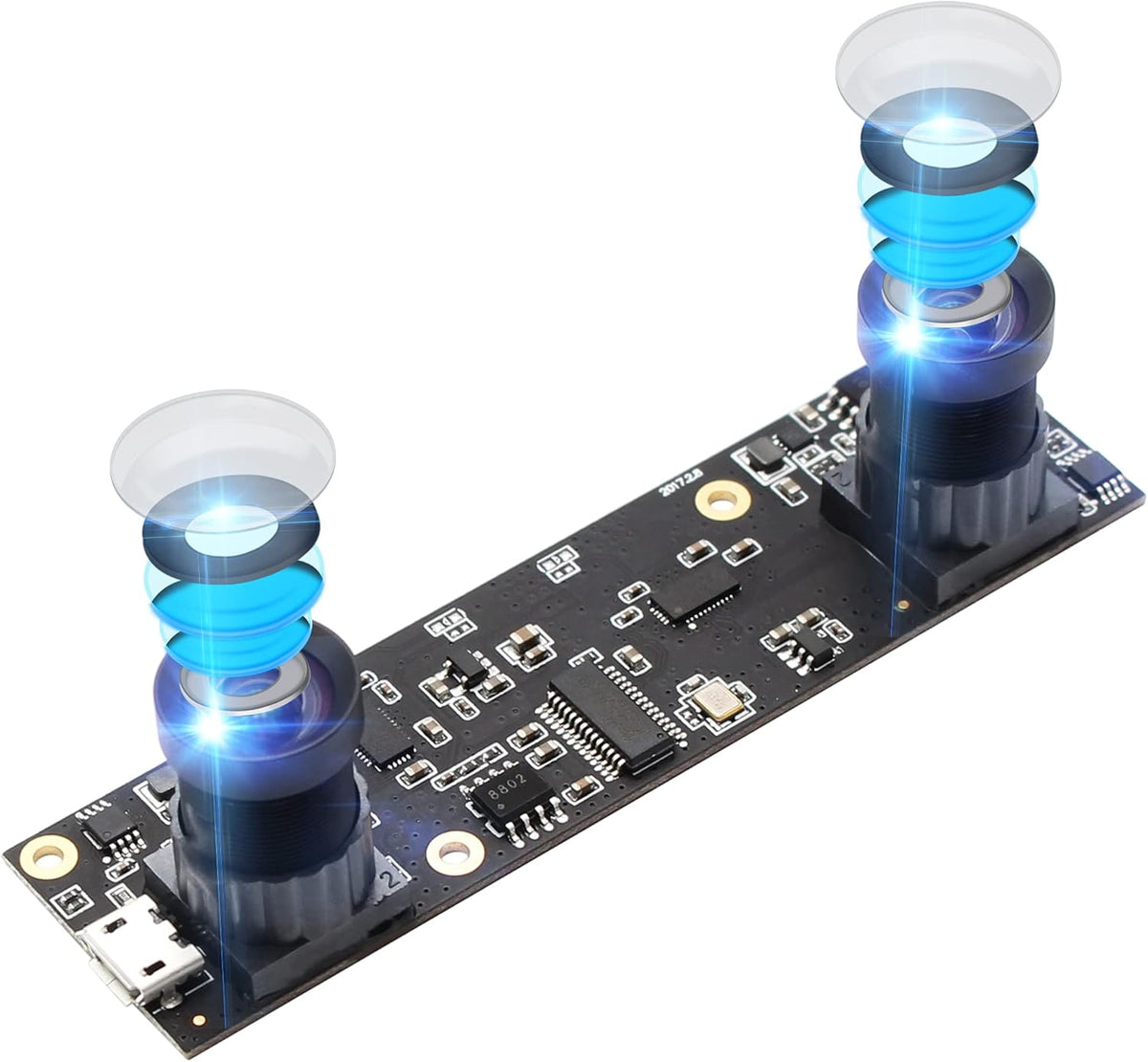

USB Camera Dual Lens 1080P 3D Stereo VR HD Webcam Module K877615
USB Camera Dual Lens 1080P 3D Stereo VR HD Webcam Module K877615
Dual Lens 3D Stereo Usb Camera Module with M9 90 Degree Lens :Usb camera module with dual lens for double confirming,2MP Full HD 1080p 90 degree dual lens usb cameras module can meet most capturing and video requirements,High resolution 2K dual lens Camera module with cmos AR0330 image sensor,Equipped with 1 meter usb cable, Support otg optional.
FULL HD 2K 1080P Double Lens USB WEBCAM Module:The streaming double lens camera module provides incredibly sharp 2K FHD to capture crystal clear images and records 1080@30fps.Used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,Tablet external,evaluator,Medical Equipment,on-the-spot law enforcement,etc.
High speed USB 2.0 interface Dual Lens USB Camera Module Mini Webcam:High quality AR0330 image sensor for high quality image,2.0 Megapixel,Max resolution:1920*1080P,Compression format :MJPEG / YUV2(YUYV),White balance Function:Excellent indoor and outdoor effects,vivid colors,great fit for high standard medical industry requirements.Compact camera for all kinds of People Counting System,VR Camera,Stereoscopic Computer Vision Application.
MJPEG/YUY2 Compression Format Dual Camera Module: USB camera module with MJPEG/YUY2 compression format help to save more storage space,streaming with less demand on your computer provides faster and smoother video uploading.1080P FHD high resolution 2 megapixel usb camera,wide application for most project.Default with 1 meter usb cable.
Plug and Play&UVC Compliant Double Lens Camera Module：Max. Resolution :1920(H) X 1080(V)@30fps,Webcamera usb module with 2 megapixel high pixel technology for sharp image and accurate color reproduction can meet most clarity requirements for different application.Usb camera mini webcam module with UVC compliant for use in most OS: Windows,Linux,Android,Mac,etc,Operation System Request:Win8 or above,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC.
Product Advantages:
1920X1080 MJPEG AR0330 Dual Lens Stereo Camera Micro Mini Industrial USB 2.0 Camera Module Driverless for 3D VR Application
· 2Megapixel HD 1080P Stereo USB2.0 Camera Module: · High quality Dual lens · UVC compliance for use in OS Windows, Linux, Android, Mac · 1920X1080 MJPEG AR0330 Dual Lens Stereo Camera · Micro Mini Industrial USB 2.0 Camera Module Driverless for 3D VR Application
Package includes:
1) 1PC 2mp dual lens usb camera module
2) 1PC 1m usb cable
Feature:
2Megapixel HD 1080P Stereo USB2.0 Camera Module
*High quality 90degree M9 lens
*High speed USB 2.0 interface
*High quality Full HD image
*Low power consumption
*Small outline for embedded application
*UVC compliance for use in OS Windows, Linux, Android, Mac
*OTG support
*High frame rate 1920 X 1080 MJPEG@ 30fps
Description:
Model: KK-1080P2CAM-V90
SensorAR0330
Lens Size1/3 inch
Pixel Size5.07um X 3.38um
Max. Resolution(left)1920(H)X1080(V) (right)1920(H)X1080(V) together3840(H)X1080(V)
Compression formatMJPEG / YUV2（YUYV）
Resolution & frame1920X1080 MJPEG@ 30fps 1904X1080 MJPEG@ 30fps 1280X720 MJPEG@ 30fps 640X480 MJPEG@ 30fps YUY2@10fps 320X240MJPEG@ 30fps YUY2@30fps
S/N Ratio39dB
Dynamic Range72.4dB
Sensitivity2.0V/lux-sec@550nm
Mini illumination0. 1lux
Shutter TypeElectronic rolling shutter / Frame exposure
Connecting Port typeUSB2.0 High Speed
Free Drive ProtocolUSB Video Class（UVC）
Support OTG ProtocolUSB2.0 OTG
AECSupport
AEBSupport
Adjustable parametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
| 2 MP webcamera module with aluminum boxing | 2 MP usb camera module with dual camera lens | 2 MP USB camera module with usb 3.0 high speed data transmission | 2 MP mini webcam usb camera module with high speed 640*360 MJPEG@260fps | 2 MP tiny usb camera module with 640*480 MJPEG 120fps | 2 MP mini webcam usb with sony IMX 322 sensor | |
|---|---|---|---|---|---|---|
| Maximum selling point | Perfect for project video capture in long distance view | Dual lens for double checking | USB 3.0 high speed data tansmission | High frame rate 640*360 MJPEG@260fps | High frame rate 640*480@100fps | Hidden pinhole lens |
| Resolution&Frame | 1920*1080 MJPEG 30fps | 1920*1080 MJPEG 30fps | 1920*1080 MJPEG50fps | 640*360 MJPEG 260fps | 640*480 MJPEG120fps | 1/2.9'' SONY IMX322 |
| Mini Illumination | 0.05LUX | 0.1LUX | 0.01LUX | 0.1LUX | 0.05LUX | 0.01LUX |
| Night Vision | Optional | NO | Optional | NO | Optional | Optional |
| Lens | 2.8-12mm/5-50mm | Dual lens | No distortion lens/3.6mm lens | No distortion lens/3.6mm lens | 2.1/3.6/170/180 fisheye lens | 3.6/2.1/3.7/no distortion/L170/L180 fisheye lens |
| Shutter | Electronic Rolling shutter/Frame Exposure | Electronic Rolling shutter/Frame Exposure | Electronic Rolling shutter/Frame Exposure | Electronic Rolling shutter/Frame Exposure | Electronic Rolling shutter/Frame Exposure | Electronic Rolling shutter/Frame Exposure |
| Driver Protocol | UVC | UVC | UVC | UVC | UVC | UVC |
| System | Linux/Laptop/Android/Mac os,etc | Linux/Laptop/Android/Mac os,etc | Linux/Laptop/Android/Mac os,etc | Linux/Laptop/Android/Mac os,etc | Linux/Laptop/Android/Mac os,etc | Linux/Laptop/Android/Mac os,etc |
| Image Sensor | CMOS OV2710 | 1/3' CMOS AR0330 | SONY IMX291 | 1/3' CMOS OV4689 | CMOS OV2710 | 1/2.9'' SONY IMX322 |
| Compression Format | MJPEG/YUY2 | MJPEG/YUY2 | MJPEG/YUY2 | MJPEG | MJPEG/YUY2 | H.264/MJPEG/YUY2 |
